DO88 Porsche 911 Turbo (996) Performance BIG PACK Intercooler

Porsche 911 Turbo (996) DO88 Performance 'BIG PACK' - Intercooler Pack & Y-Pipe

To Fit:

• Porsche 911 (996 Turbo) 2001 to 2005
• Turbo, Turbo S, X50 & GT2

The ultimate performance package for Porsche 911 (996) Turbo, with both increased flow and significantly lower inlet temperature!

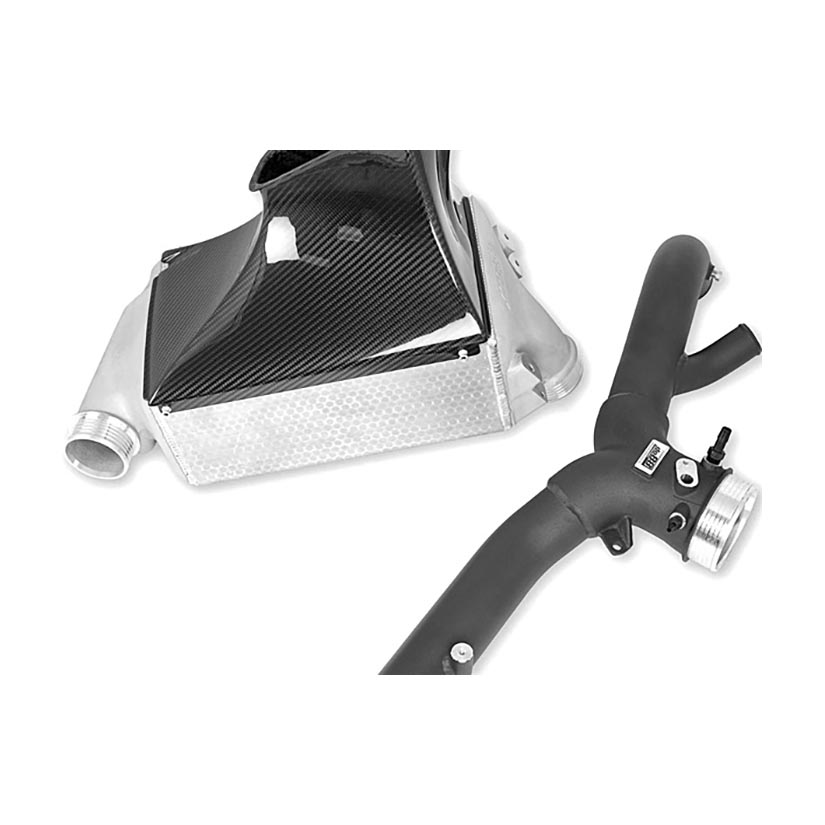

This kit is offered at a package price and includes our charge air coolers, our high-flow Y-pipe, as well as all necessary hoses, accessories, and mounting details.

Our intercooler kit and Y-pipe are excellent products on their own, but when assembled together, they form a powerful unit that delivers lower inlet temperatures and increased flow while reducing back pressure across the system - resulting in a significant power increase!

- Lower inlet temperature under the same test conditions: 25°C (66°F), a decrease of 41°C. See diagram under the product images.
- More oxygen to your engine, less back pressure, and improved flow!
- Airflow at 0.1 bar / 1.45 psi pressure drop: 572 CFM (501 CFM), an increase by 14%! See diagram under the product images.
- Bar&Plate cells of motorsport quality from renowned Garrett, absolutely highest quality.
- 3D free-form designed cast tanks.
- Specially designed carbon fibre air guides.
- Reduced pressure drop! See diagram below!
- Y-pipe made from 63mm mandrel bent aluminium pipes.
- Y-pipe with elegant, cast collector part.
- Comes with high-quality silicone hoses and mounting accessories.

About our intercoolers:

To optimally distribute the flow over the entire core, we use casting, flow-optimized tanks. A well designed tank is essential to maximise heat transfer properties and flow. Flow and cooling capacity directly depend on the dimensions of the core and to utilise as thick a core as possible, we have replaced the upper air guides with carbon fibre guides. These are designed by do88 with 3D scanning as a basis, which guarantees an excellent fit against both the car's bodywork and our large intercoolers.

To maximise cooling, these air guides are equipped with seals against both the charge air cooler and bodywork, to ensure that the cooling air does not take the easier routes around the core. The intercooler connections are a full 70mm (2 3/4") to maximise flow and eliminate any bottlenecks in the system. This means that this kit comes with new hoses at all four positions, all designed and CFD-tested for optimal flow. The hoses at the turbocharger outlet are made of material with especially high heat resistance, rated for a constant temperature of 240°C.

About our Y-pipe:

Our do88 Y-pipe is the result of extensive design work with many hours at the CAD drawing board and several flow calculations and 3D prints. do88's Y-pipe is the solution when you are aiming for high performance goals and want to eliminate system restrictions. It provides significantly improved flow along with low weight! The Y-pipe is made from mandrel bent lightweight aluminium pipes that are welded to a 3D free-form designed, cast collector to maximise flow.

The Y-pipe is finished with an elegant powder coating that gives it a look to match its performance.

Performance:

Regarding performance, do88 intercoolers effectively lower the intake temperature! The diagram visualizes the difference compared to the original (OEM) 996 intercoolers.
Data was collected with an AIM race logger during three immediately consecutive runs. Full throttle accelerations between 50-250 km/h were performed in a stage 1 tuned Porsche 996.
No cooling between the runs, just full throttle. The test was conducted as follows: First, three runs were performed with the car equipped with OEM intercoolers.
Then quickly changed parts to do88 intercoolers. Then another three runs were performed...
